Poultry Broiler Cage Equipment Automatic H Type Chicken Broiler Breeder Cage

Broiler Cage Equipment

1. A variety of cages to meet the needs of different spans of housing construction

2.The frame structure satisfies the overall stability of the equipment, the mesh wear-stress is changed into a sheet metal wear-stress, which can prevent deformation of the mesh.

3. The main frame of the equipment is formed by one-time forming of 275g hot-dip galvanized sheet, which guarantees the anti-rust ability of the equipment under the premise of meeting the strength of the equipment.

4. The cage door is a fully open structure. When the chicken is caught, the chicken wing breaking rate is reduced, which is convenient for operation.5. Double-layer scraping structure ensures sufficient separation of manure and feces.

6. After the welding of the mesh is completed, it will be hot-dip galvanized, so it is corrosion-resistant and anti-aging, which has a service life of 10-15 years.

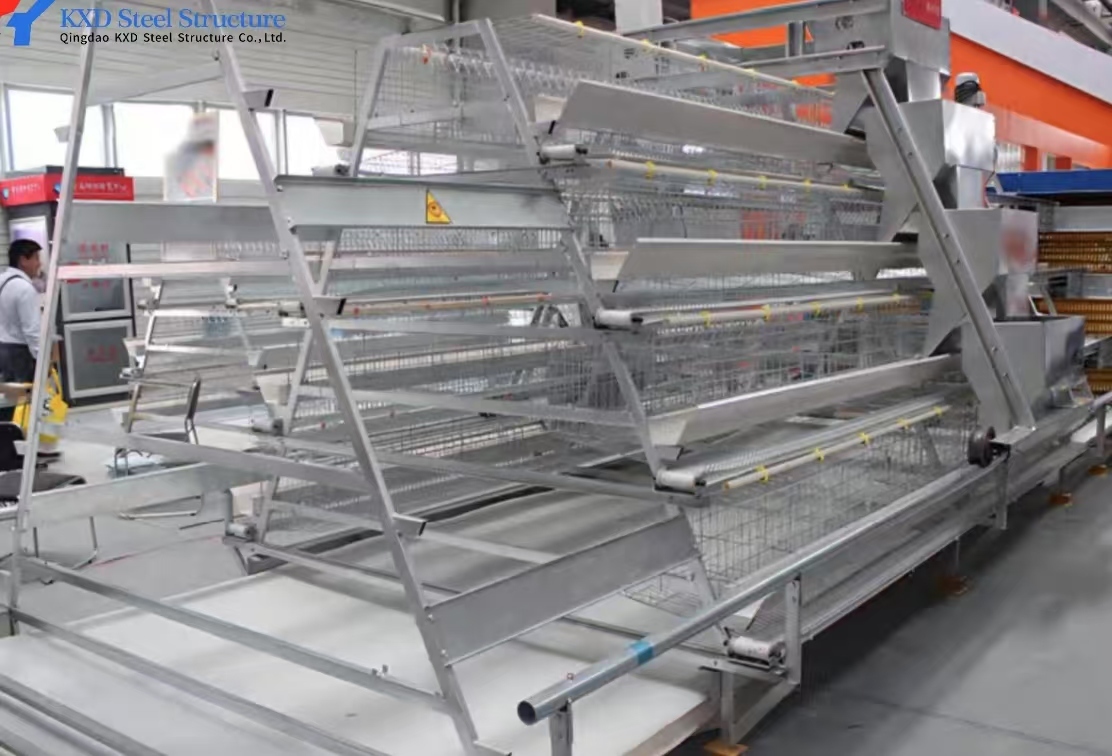

A type Cages

• Adopt hot-dip galvanization technology to ensure the service life of 15-20 years.

• Long service life, high stability, and low cost of the equipment.

• Semi-Automatic drinking and manure cleaning can help to save energy and improve the working efficiency.

• Well ventilation, comfortable environment, easy to operate.

• Low proportion between forage and egg, low production costs. Applicable to manual or semi-automatic, open chicken house raising. The breeding quantity is no more than 20k layers, recommended to use.

•It also helps to save operator's time and labor cost, and improve raising performance.

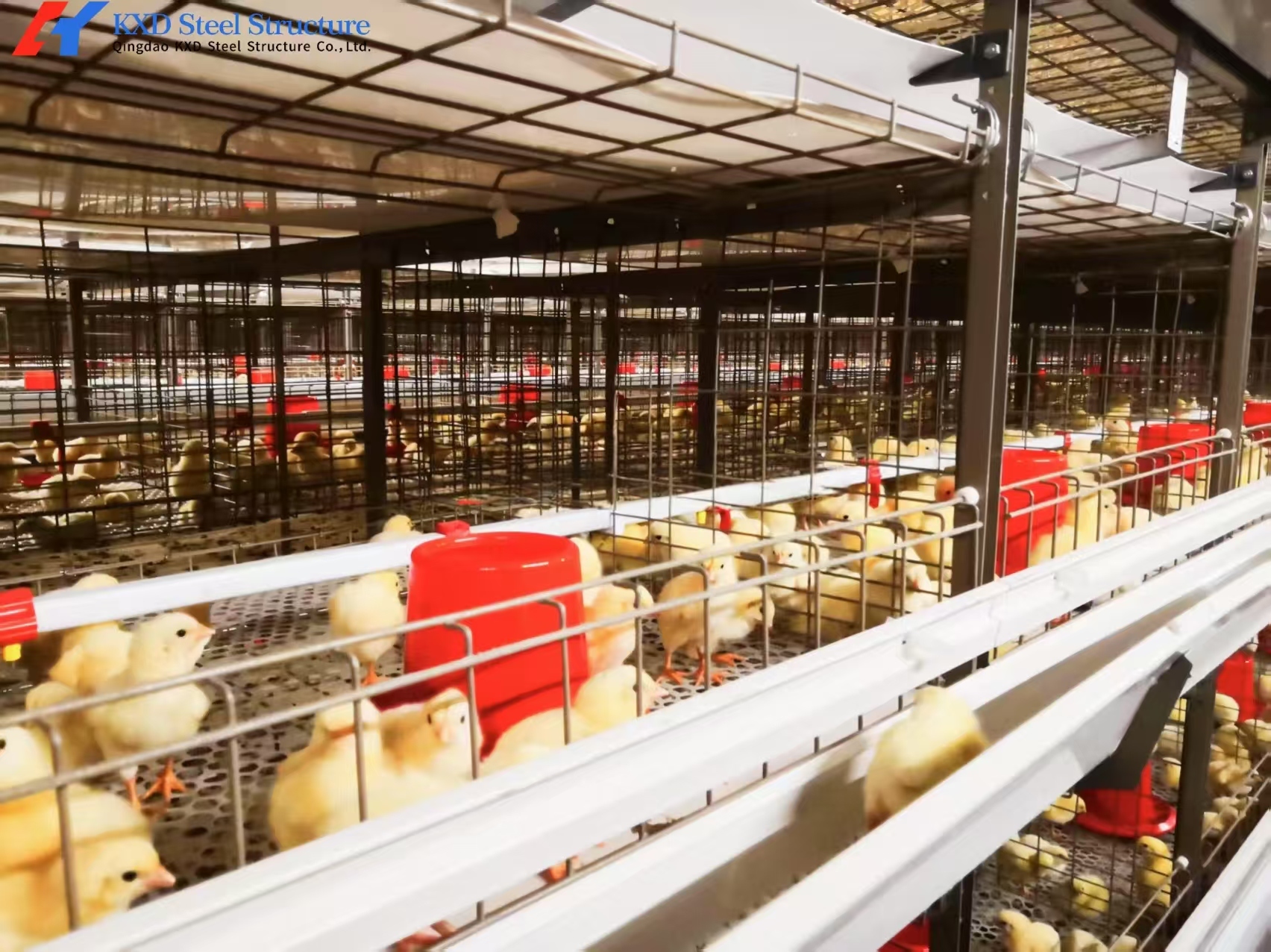

H type Cage

• Adopt hot-dip galvanization technology to ensure the service life of 20-25 years.

• H-type cage is the room saver, can reach more breeding quantity.

• Automatic drinking, feeding, manure cleaning and egg collecting can greatly save energy and improve the working efficiency.

• Long service life, high stability, and high output rate of return and comprehensive rate.

• High degree of mechanization, high degree of hygiene in the chicken house, low irritating smell, and clean feces disposal in place. H type cage can meet the needs of large-scale farming.

Silo Attributes

Feed Pan Details

Drinker Nipple Details

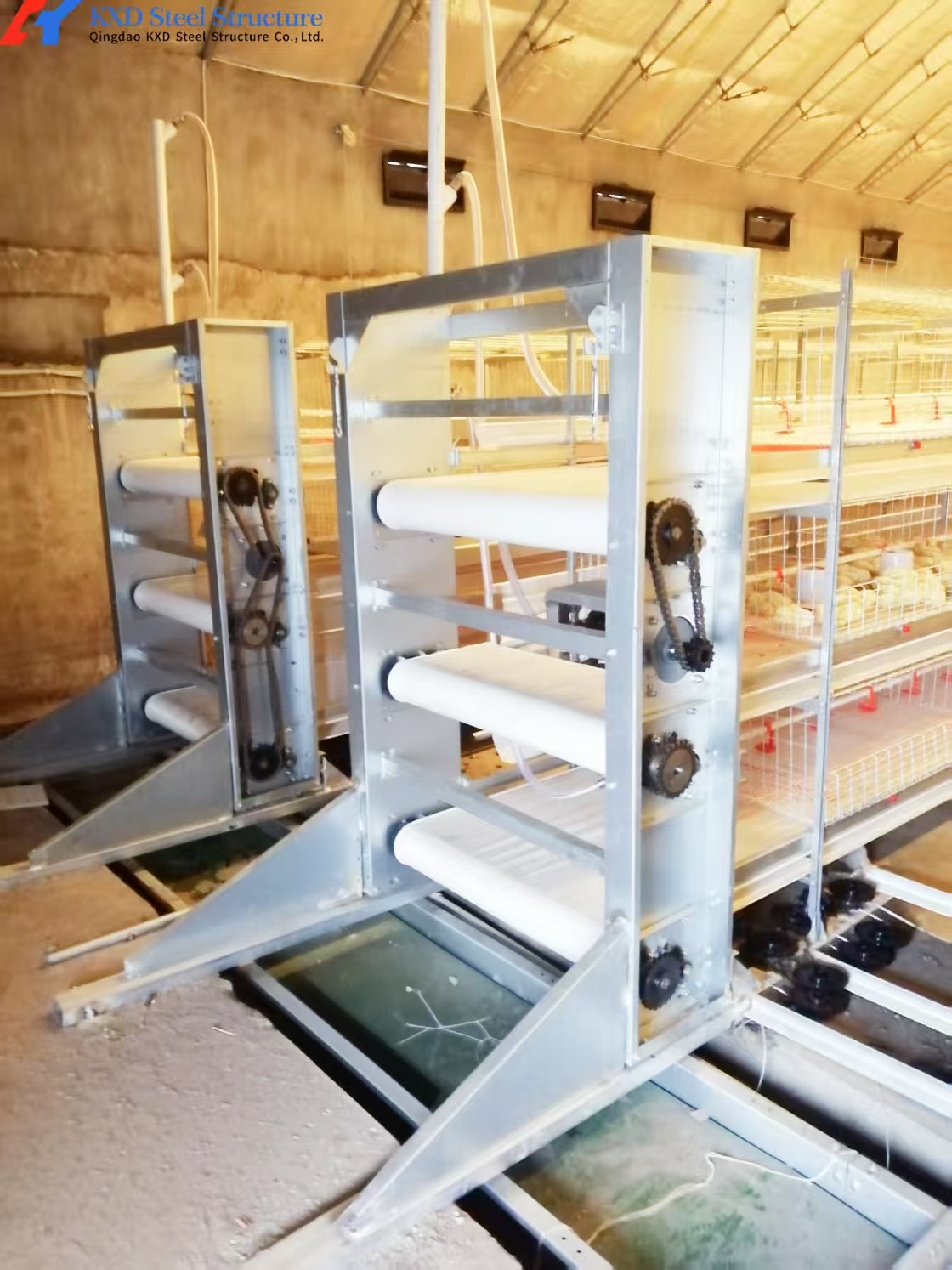

Manure Cleaning System for Cage Feeding

• Traction type automatic manure cleaning machine is the best choice of modern farming eld network raised or cage, can effectively reduce the labor intensity,improve the environment of chicken house, greatly shorten the cleaning house time, eliminate farm pollution.

• Drive system for heavy duty, power output is more powerful .

• Components all use galvanized, corrosion resistance ability.

• A manure scraping plate is reinforced, reasonable design,excrement cleaning clean, low failure rate.

•Turning round reinforcement design, bear stronger and self-cleaning function.

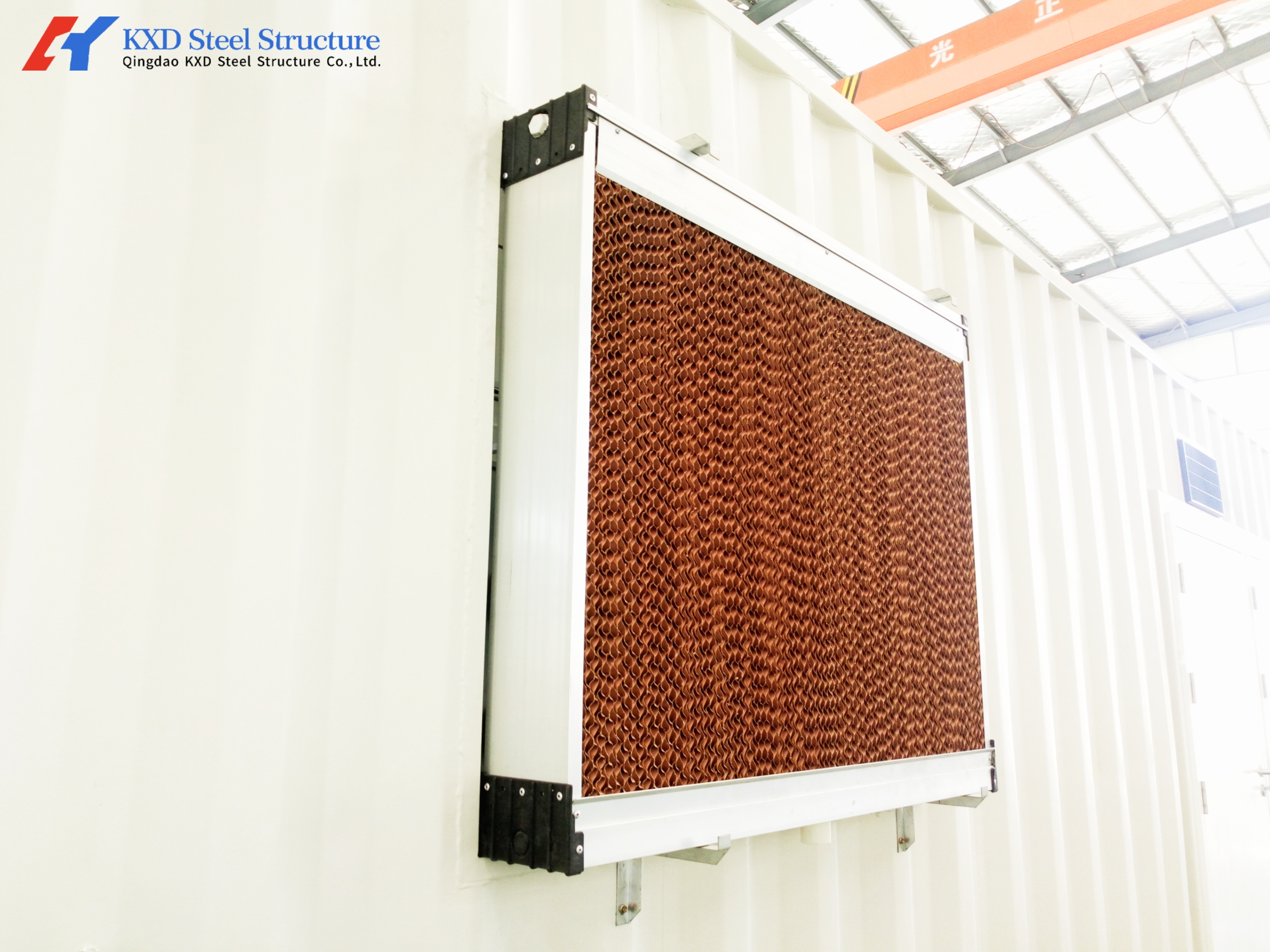

Environmental System

Environment control system has chicken grow temperature curve, minimum air volume curve, light curve, automatic control crosswise and length ways ventilate. Control exhaust fan, heater stove, curtain, cooling pad, light system and feeding line. The system can through the mobile phone to realize remote real-time monitoring and management.

The advanced livestock and poultry environment controller adopts the latest intelligent control technology, which combines temperature, humidity, static pressure, ventilation, lighting and other parameters with the poultry feeding process parameters. It has the characteristics of stable temperature control, adequate and reasonable ventilation, automatic timing lighting, accurate and reliable. The controller adopts large-scale touch screen, which can directly display the operation status of all equipment in the poultry house, and it is easy to operate.

Feeding System Composition

• Vice driver • The feed pan • Feed tube • Augor • Side feed box • The lifting device • Porching prevention device

• Silo type and hopper type are the two main feeding lines.

• Feed transport system runs steadily, and feed can be transport ed to each feed pan to guarantee the sufficient feedsupply for broiler.

• Silo volume can be adjusted based on the specific number of birds per shed. (Approximately 0.65 ton/m3)

• Imported feed level sensor is provided in the automatic electronic-controlled box, which greatly enhances the accuracy of the whole feeding transport process.

• Feed pan is adjustable in height, easy to clean, and can bedismantled and then used for rearing.

Our Service

1. Make suitable design plan and detailed approval drawings of steel structure building according to the land layout area and purposes of building by Tekla, PKPM, 3D3S.
2. Steel structure buildings consultation service.
3. Budget always on deck for our client
4. Meticulous Fabrication,with great precision.
5. Erection & installation of steel structure building. Our technician and skilled workers can be dispatched on site to guide or erection process.
6. Transportation & delivery per your requirements

Package & Loading

All components are packed in bundles and secured with steel straps.

The main frame is packed in a container or shipped as a single package.

Wall and roof panels are packed separately to avoid damage during shipping.

All necessary fittings and accessories are included in the package.

Our Factory

Qingdao KXD Steel Structure Co.,Ltd, established in 2002, is a professional manufacturer specializing in steel structure poultry&piggery houses with automatic equipment. With over two decades of development, our company has been committed to providing high quality agricultural building solutions for the clients all around the world.

With high-quality products and good after-sales service, our company has obtained CE certification (EN1090 certificate), ISO 9001, IS0140001, 1S045001 Certificate and WPQR for anticipated appraisal from our clients. The professional technical teams at KXD ensure that every project can be finished perfectly from design to installation. Every product meets international standards for durability, efficiency, and sustainability. Our products have been exported to more than 130 countries and regions around the world, such as America,France,Holland, Australia, Peru, Argentina, Uruguay and the whole of Africa area countries etc.

Dedication to customer satisfaction, combined with its advanced manufacturing processes and rigorous quality control, Qingdao KXD continues to expand its global footprint, delivering reliable and cost-effective steel structure farming solutions that support the global poultry & piggery industry.
