Steel Poultry House Equipment Broiler Feeding on Ground

Broiler Feeding on Ground Introduction

Broiler feeding system, consists of automatic feeding&drinking system, environmental control sewage system and manure cleaning system.It is a traditional raising mode.

Adopted automatic feeding, drinking and environmental control system can help us save energy and labor cost, greatly improve the working efficiency. Meanwhile,the manure cleaning system is easy to use and maintain with environmental water shortage alarm functions.

Product Details

Main Feeding Silo

Hot-dip galvanized 5T - 21T can choose One-way & Two-way outlet feed Feed stored for 3 days Waterproof, moisture-proof and heat insulation Feed level sensor from Germany Auger from South Africa 75mm / 90mm tube

Hopper

Hot-dip galvanized 800KG - 1400KG can choose One-way outlet feed Keep fresh feed

Motor

Power: 0.75Kw, 1.1 Kw, 1.5 Kw Voltage: 220V, 380V, Customized Adopts a new type of high-purity all-copper coil resistant to 155 degrees Celsius, Exquisite appearance corrosion resistance, strong heat dissipation, paint surface adhesion is strong and does not fall off.

Drinking System

This system can provide fresh and clean water for poultry which is crucial for the growth of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easily.Automatic drinking system will include nipple drinkers, filter, pipe connection,lifting piece, dosing device, tube fix clip.s-hook,lifter, small pulley, nylon cord.

Poultry Automatic Nipple

Poultry Automatic Nipple 12nipple or 15nipple/3mDrinking/drinker system for your choice: Square water pipe with galvanized support Round water pipe with aluminum support Square water pipe with aluminum support Different Type Nipple Drinker But All is Double seal structure.

Pressure Regulator

Double water-inlet-tube and flushing pressure regulator ensure large water flow . water-level display pipe hanging system.

Ventilation System

Includes cooling pad, aluminum frame of cooling pad, cooling water circling system, 52’ high-negative cone fan etc.

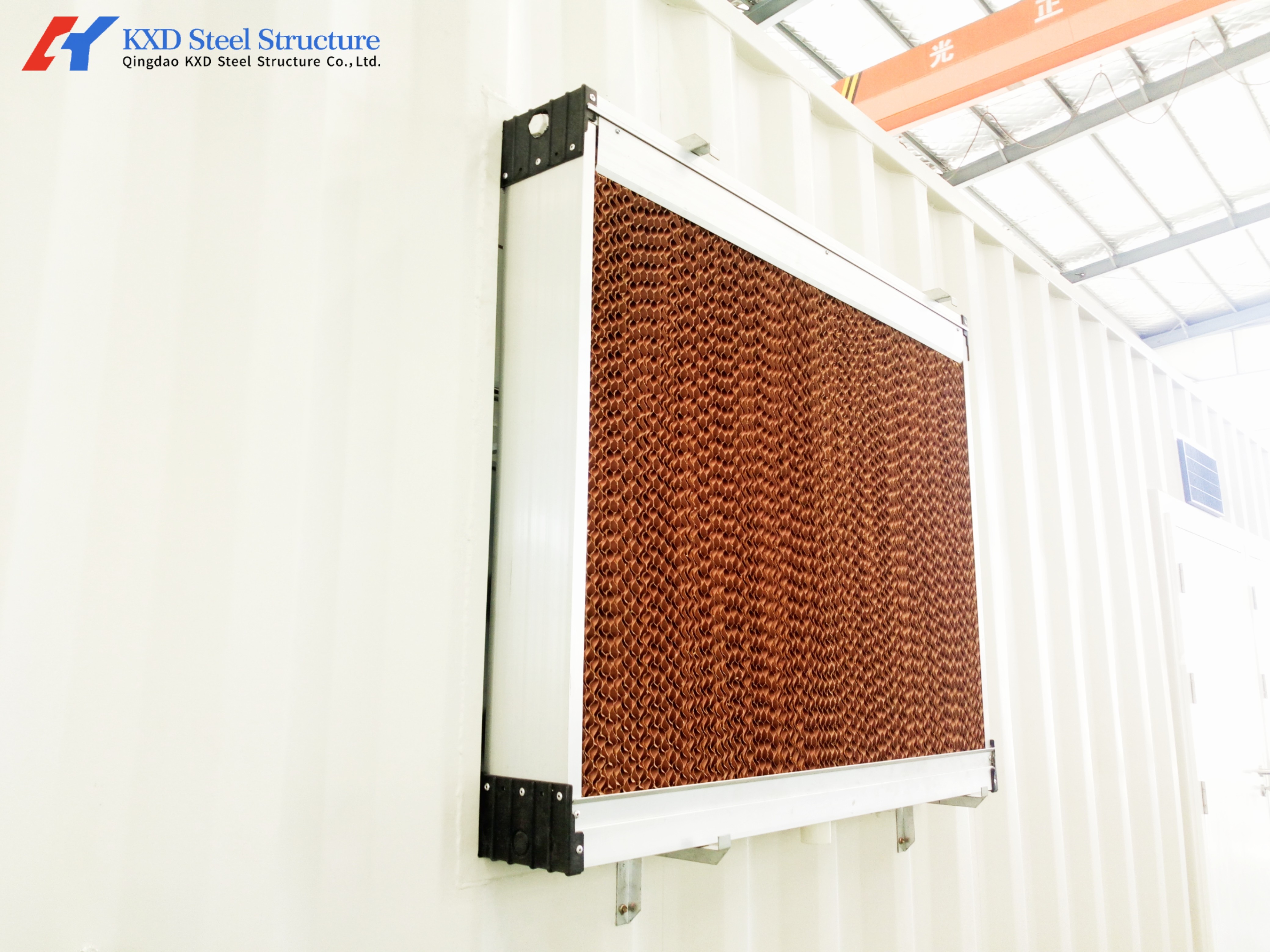

Cooling Pad System

Cooling Pad is a special paper honeycomb structure material, its working principle is "water evaporation absorb heat" this natural physical phenomenon. That is water in the role of gravity, from the top downward -ow, in the cooling pad corrugated per surface to form a water lm, when the ow of air through the cooling pad, the water lm in the water will evaporate to absorb the heat of the air to take away a lot of latent heat, so that after the wet curtain the air temperature is reduced. This will lower the temperature of the air passing through the cooling pad, thus achieving the purpose of cooling.

Environment Control System

The advanced livestock and poultry environment controller adopts the latest intelligent control technology, which combines temperature, humidity, static pressure, ventilation, lighting and other parameters with the poultry feeding process parameters. It has the characteristics of stable temperature control, adequate and reasonable ventilation, automatic timing lighting, accurate and reliable. The controller adopts large-scale touch screen, which can directly display the operation status of all equipment in the poultry house, and it is easy to operate.

Our One-Stop Service

1. Make suitable design plan and detailed approval drawings of steel structure building according to the land layout area and purposes of building by Tekla, PKPM, 3D3S.
2. Steel structure buildings consultation service.
3. Budget always on deck for our client
4. Meticulous Fabrication,with great precision.
5. Erection & installation of steel structure building. Our technician and skilled workers can be dispatched on site to guide or erection process.
6. Transportation & delivery per your requirements
