Qingdao KXD Steel Structure Co., Ltd
1 Years
| Ask Lasest Price | |
| Brand Name : | KXD |
| Model Number : | KXD-EQUIPMENT |
| Certification : | CE, ISO 9001, ISO140001, ISO45001 |
| Price : | 2-5 USD/unit |
| Payment Terms : | L/C,T/T,Western Union,MoneyGram |
| Supply Ability : | 15000 units Per Month |
| Delivery Time : | 15-35 days |

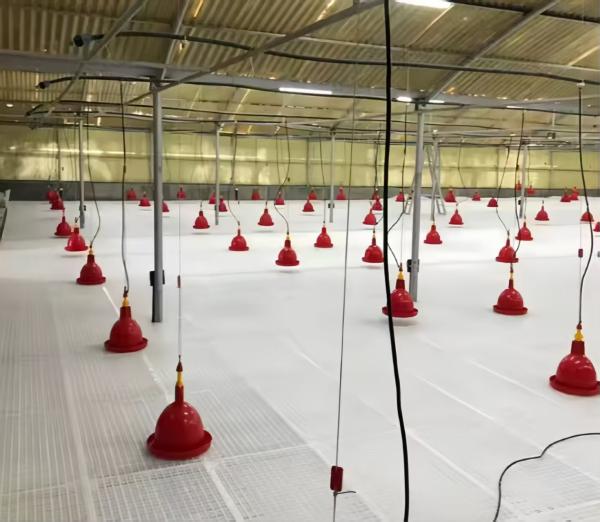

Poultry Farm Plastic Slatted Flooring Chicken&Sheep Poultry Slatted Floor For Chicken House
The Floor Description
1.Cell size:Length 3000mm,width 1820mm,height 450 mm. Raising areas
is 5.46㎡.
2.The maximum raising density is 50kg/㎡. 110 birds can be put in each tier. For 3 tiers, 330 birds can be
put per cage unit.For 4 tiers,440 birds can be put per cage unit.
The distance between two adjacent cage frames should be more than
1.2m.
3.For each tier there are two watering lines and one feeding line.
There are 2 feeding pans and 12 nipples for drinking.
4.The material of the main equipment is galvanized steel. The
galvanization standard for main parts is more than 275g/㎡(accord with international standard GB/T2518-2008).The material has excellent anti-rust
and anti-corrosion properties
4 tiers Battery Cage:2 to 4 times higher capacity compared to floor system,higher utilization of space reduced energy costs for heating or cooling.
The Floor SPecification
Product name | Floor Broiler Pan Feeding System |
Type | Automatic |
No. Of birds/pan | 55-75 broiler per pan |
Hopper | Hot galvanized ,70kg or customization |
Motor | China TIANRUI Brand |
Feed pipe | 4 Holes /3040mm,with or without rib;1.2mm thickness |
Auger | China Technical Brand / 45MM |
Feed pan | 330mm diameter; with grill or without grill |
Feed lever sensor | France IFM Brand |
Suspention Part | Pulley,Steel Wire,Manual Witch etc |

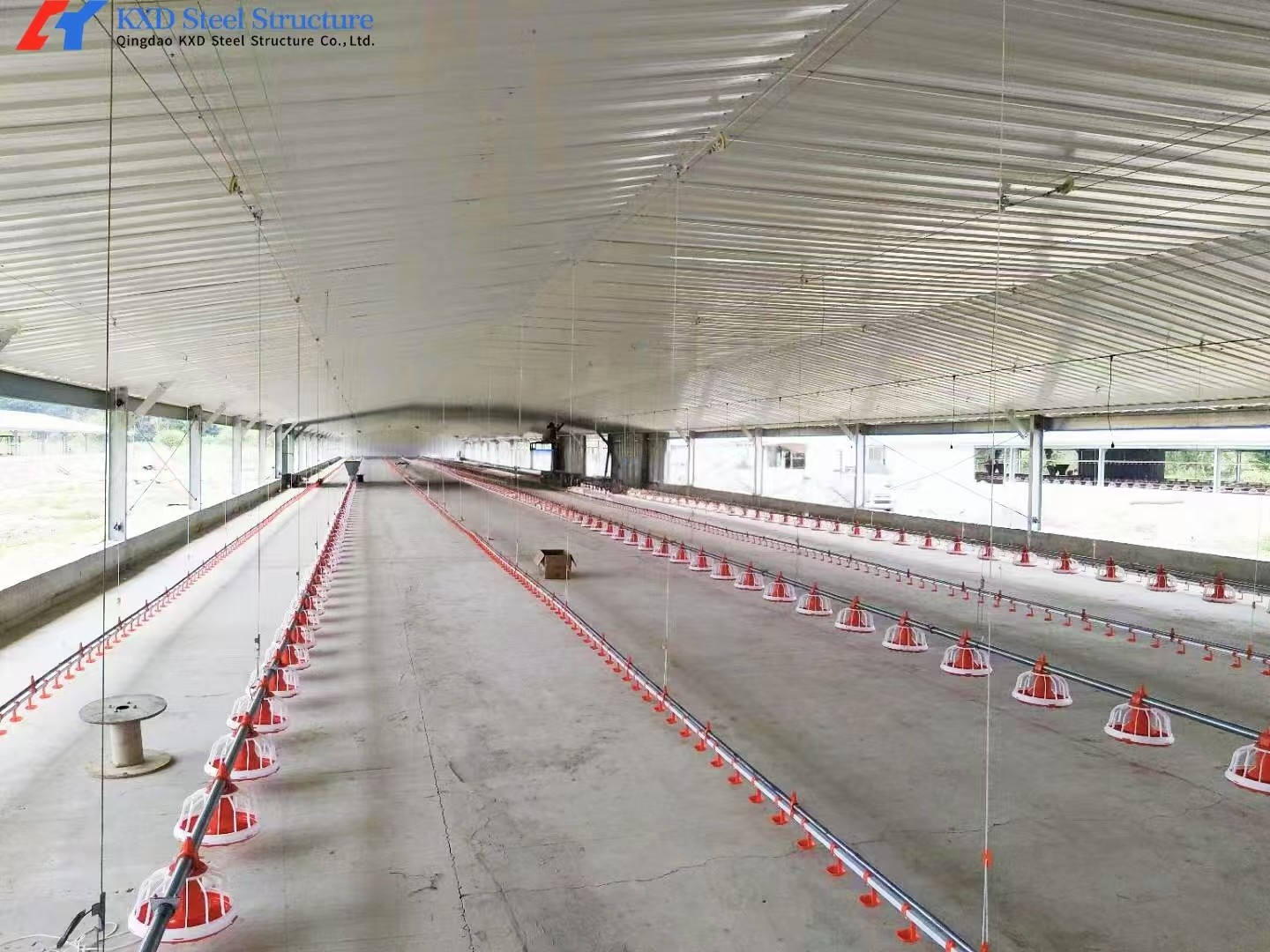

Broiler Ground Feeding System
Cage Feeding System, A&H Type
A type cage • Adopt hot-dip galvanization technology to ensure the service life of 15-20 years. • Long service life, high stability, and low cost of the equipment. • Semi-Automatic drinking and manure cleaning can help to save energy and improve the working efficiency. • Well ventilation, comfortable environment, easy to operate. • Low proportion between forage and egg, low production costs. Applicable to manual or semi-automatic, open chicken house raising. The breeding quantity is no more than 20k layers, recommended to use. •It also helps to save operator's time and labor cost, and improve raising performance. |
H type cage • Adopt hot-dip galvanization technology to ensure the service life of 20-25 years. • H-type cage is the room saver, can reach more breeding quantity. • Automatic drinking, feeding, manure cleaning and egg collecting can greatly save energy and improve the working efficiency. • Long service life, high stability, and high output rate of return and comprehensive rate. • High degree of mechanization, high degree of hygiene in the chicken house, low irritating smell, and clean feces disposal in place. H type cage can meet the needs of large-scale farming. |
Steel Material
Q235 High Quality Steel Material from Brand Manufacturers: 275g/m²
Hot-dip Galvanized Steel,stronger equipment with better corrosion
resistance.
Numerical Control Process Technology:high precision, easy to
install,operate smoothly.
PP Floors
Pull-type Soft PP Floors:prevents breast blisters and promotes clean and healthy feet thus providing excellent
hygienic . quick and efficient moving-out of the broilers.
Smart Environment Control System:more accurate smart control.
Smart Environment Control System
Smart Environment Control System:the easy-to-use smart environment
control system guarantees ideal environment.
Spray Disinfection:simple cleaning and disinfection after the
batch.
Automatic Feeding System:every chicken has adequate feed intake.
LED Lighting System
Dimmable LED Lighting:meet brightness needs in different ages.
110 birds/door:every chicken has adequate feed intake.Easy to
observe the health of chickens.
496cm²/bird:smaller activity space, higher feed conversion.
Automatic Manure Cleaning System
1. High zinc plate: 275g high zinc plate is not easy to rust.
2. Technology superb: Laser cutting machine unied cutting, high precision without error.
3. Operating aspect: Motor adopts gear maintenance-free motor, low failure rate, and saves operator maintenance workload.
4. Running stability: Stable operation, no deviation of the manure belt is more convenient to use.
Automatic Ventilation System
1. Buttery gate design of small wind resistance, good performance, reduce the load of the motor.
2.Reasonable air volume, air force.
3.External motor repair, convenient.
4.Frame adopts high quality galvanized steel sheet.
5.Three-phase energy efficient motor.
6. 3G certication, safe and reliable.
Good Package to Reduce the Damage During Transportation
Our One-Stop Service
1. Make suitable design plan and detailed approval drawings of
steel structure building according to the land layout area and
purposes of building by Tekla, PKPM, 3D3S.
2. Steel structure buildings consultation service.
3. Budget always on deck for our client
4. Meticulous Fabrication,with great precision.
5. Erection & installation of steel structure building. Our
technician and skilled workers can be dispatched on site to guide
or erection process.
6. Transportation & delivery per your requirements
|
|
