Farrowing Crate Farrowing Pen For Sale Plastic Farrowing Crate Pig Flooring

Steel Structure Piggery Shed

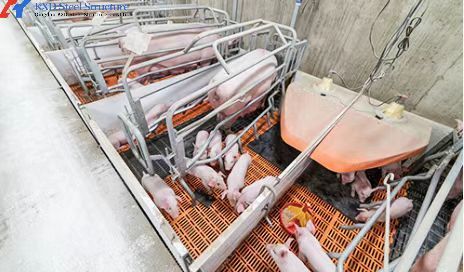

Farrowing Crate System

Steel Rod Farrowing Crate

Fence:2400*700*1100mm, hot-dip galvanized, zinc coating280μm, double doors with limit device for back and tail and ant extrusion rod, fix with stainless steel bolt.

φ20mm steel rod for fence, φ16mm steel rod for front/rear doors.

Feed trough:20L stainless steel 304, reversible cleaning.

Ad Libitum Feeder:latch lock design, 5-level regulation free feeding, 304 stainless steel with PP square hopper.

Drinker:1/2“male screw, hot galvanized water pipe to fix in the front with 304 stainless steel drinker.

Steel Pipe Farrowing Crate

Fence:2400*700*1100mm, entirety hot galvanized, zinc coating280μm.

With therod which prevent crushing piglets, fix with stainless steel bolt.

Made of φ32*2.5mm & φ26x2.5mm round pipe, φ20 & φ14solid bar.

Feed trough:20L stainless steel 304, reversible cleaning.

Adjustable back door, adjustable penning width.

Front gate could be open either way.

Drinker:.1/2 male screw, 304 stainless steel drinker.

Limit Crate

Mating stall/dry sow pen

Specification

length*width*height:2200*600*1000mm, 2200*650*1000mm, 2400*700*1200mm.

Side crate:frame φ20 round steel, neck bush (φ14 round steel, entirety hot galvanized with zinc coating280μm.

Front door:frame (φ16 round steel, inner frame φ14 round steel, latch lock, entirety hot galvanized with zinc coating280um.

Rear door frame size O16 steel rod, neck bush o14 steel rod, latch lock, Al designing, entirety hot galvanized with zinc coatine28oy.

Sow feed trough:304 stainless steel, 1.5mm thickness, with adjustable drain plug and fixed part.

Fattening crate/Finisher pen

Superior material 30*30mm angle bar;

Vertical material 40*5mm steel flat;

Bottom one for level material φ20mm rod;Top one for level material φ14mm rod;

Upright 40*40*2.5mm square tube, 900mm height, with plastic plug and anchor plate , 200*200*6mm steel plate;entirety hot galvanized with zinc coating280μm.

Post-weaning crate

With PVC fencing, thickness of edge connector 2mm, Hot-dip galvanized with zinc coating280μm;

Pillar serging:40*40*2.5mm square tube with anchor plate 200*200*6mm steel plate;

PVC board:H=750mm, herringbone steel;

Top bar:φ32*2.5mm rod with specialized round to square fasteners;Entirety hot galvanized with zinc coating280um.

Semen Collection Crate

Front crate: up and down frame 50*30 rectangle tube, vertical 1 inch steel tube thickness 2. 5mm;

Side crate: up and down frame 50*30 rectangle tube, vertical 1 inch steel tube thickness 2.5mm;

Back door:up and down frame 50*30 rectangle tube, vertical 1 inch steel tube thickness 2.5mm;

Crate door: up and down frame 50*30 rectangle tube, vertical l inch steel tube thickness 2.5mm;

Stand column:40*40*2.5mm square tube with anchor plate 200*200*6mm steel plate;

Entirty hot galvanized with zinc coating280um.

Boars crate, limit crate

Front part:2800*1100mm up and down 50*30 rectangle tube, vertical 1 inch steel tube thickness 2.5mm;

Side part:2400*1100mm up and down 50*30 rectangle tube, vertical 1 inch steel tube thickness 2.5mm;

Back door:1800*1100mm up and down 50*30rectangle tube, vertical 1 inch steel tube thickness 2.5mm;

Crate door: 1000*1100mm up and down 50*30rectangle tube, vertical 1 inch steel tube thickness 2.5mm;

Stand column:40*40*2, 5mm square tube with anchor plate 200*200*6mm steel plate, overall hot galvanized with zinc coating280μm.

Steel Structure Piggery Shed

With PVC fencing, thickness of edge connector 2mm, Hot-dip galvanized with zinc coating280μm;

Pillar serging:40*40*2.5mm square tube with anchor plate 200*200*6mm steel plate;

PVC board:H=750mm, herringbone steel;

Top bar:φ32*2.5mm rod with specialized round to square fasteners;Entirety hot galvanized with zinc coating280um.

Other Accessories

KXD knows that it takes a lot to feed your pigs. That’s why we offer top of the line products to help you store your feed and easily transport it into your barns.

On-site Installation

Package & Unloading Containers

Qingdao KXD Steel Structure Co.,Ltd, established in 2002, is a professional manufacturer specializing in steel structure poultry&piggery houses with automatic equipment. With over two decades of development, our company has been committed to providing high quality agricultural building solutions for the clients all around the world.

With high-quality products and good after-sales service, our company has obtained CE certification (EN1090 certificate), ISO 9001, IS0140001, 1S045001 Certificate and WPQR for anticipated appraisal from our clients. The professional technical teams at KXD ensure that every project can be finished perfectly from design to installation. Every product meets international standards for durability, efficiency, and sustainability. Our products have been exported to more than 130 countries and regions around the world, such as America,France,Holland, Australia, Peru, Argentina, Uruguay and the whole of Africa area countries etc.

Dedication to customer satisfaction, combined with its advanced manufacturing processes and rigorous quality control, Qingdao KXD continues to expand its global footprint, delivering reliable and cost-effective steel structure farming solutions that support the global poultry & piggery industry.
