Steel Poultry Hous

Broiler feeding system, consists of automatic feeding&drinking system, environmental control sewage system and manure cleaning system.It is a traditional raising mode.

Adopted automatic feeding, drinking and environmental control system can help us save energy and labor cost, greatly improve the working efficiency. Meanwhile,the manure cleaning system is easy to use and maintain with environmental water shortage alarm functions.

Feeding System Composition

• Vice driver • The feed pan • Feed tube • Augor • Side feed box • The lifting device • Porching prevention device

Drinker Nipple Details

Silo Attributes

The Floor Description

1. Cell size:Length 3000mm,width 1820mm,height 450 mm. Raising areas is 5.46㎡.
2.The maximum raising density is 50kg/㎡. 110 birds can be put in each tier. For 3 tiers, 330 birds can be put per cage unit.For 4 tiers,440 birds can be put per cage unit. The distance between two adjacent cage frames should be more than 1.2m.
3. For each tier there are two watering lines and one feeding line. There are 2 feeding pans and 12 nipples for drinking.
4.The material of the main equipment is galvanized steel. The galvanization standard for main parts is more than 275g/㎡(accord with international standard GB/T2518-2008).The material has excellent anti-rust and anti-corrosion properties

4 tiers Battery Cage:2 to 4 times higher capacity compared to floor system,higher utilization of space reduced energy costs for heating or cooling.

The Floor SPecification

Leakage Dung Board

• Leakage dung board using poly propylene ratio of material, anti-aging UV resistance, no edges and corners of R arc non-slip design does not hurt the chicken feet, strong bearing capacity, easy cleaning and installation, long service life.

• Soft, non-slip(poultry based on stable, foot health, improve poultry welfare).

• No sharp edges (there is no risk of injury, the breast can't scratch).

• Surface mesh structure (best fecal leakage, the feeding stage oors are clean).

• According to the installation of different hen house conditions, convenient disassembly.

• Specification :1200mm X500mm

• Weight:2000g

Environmental System

Environment control system has chicken grow temperature curve, minimum air volume curve, light curve, automatic control crosswise and length ways ventilate. Control exhaust fan, heater stove, curtain, cooling pad, light system and feeding line. The system can through the mobile phone to realize remote real-time monitoring and management.

Quality Standard & Control

With 20 year warranty in the steel building industry,our company has standard on the quality of steel building. We have acquired the ISO9001 and CE certificate. The followings are the related standard that we strictly follow whether for the design and fabrication of steel buildings:
GB/T1591-2008/2018
GB/T11263-2010
GB/T 2518-2008
GB/T12754-2006
GB/T 1228-2006

Package & Loading

Product Packaging:

All components are packed in bundles and secured with steel straps.

The main frame is packed in a container or shipped as a single package.

Wall and roof panels are packed separately to avoid damage during shipping.

All necessary fittings and accessories are included in the package.

Shipping:

The Steel Structure Poultry House will be shipped by sea.

Delivery time will vary based on the destination and shipping method.

Customers will be provided with tracking information once the product has shipped.

Our Team

Our commitment to customer satisfaction means that we are always available to answer any questions or concerns that may arise, and we work tirelessly to ensure that our customers are fully satisfied with their purchase. We are dedicated to providing top-notch technical support and services for the Steel Structure Poultry House product.

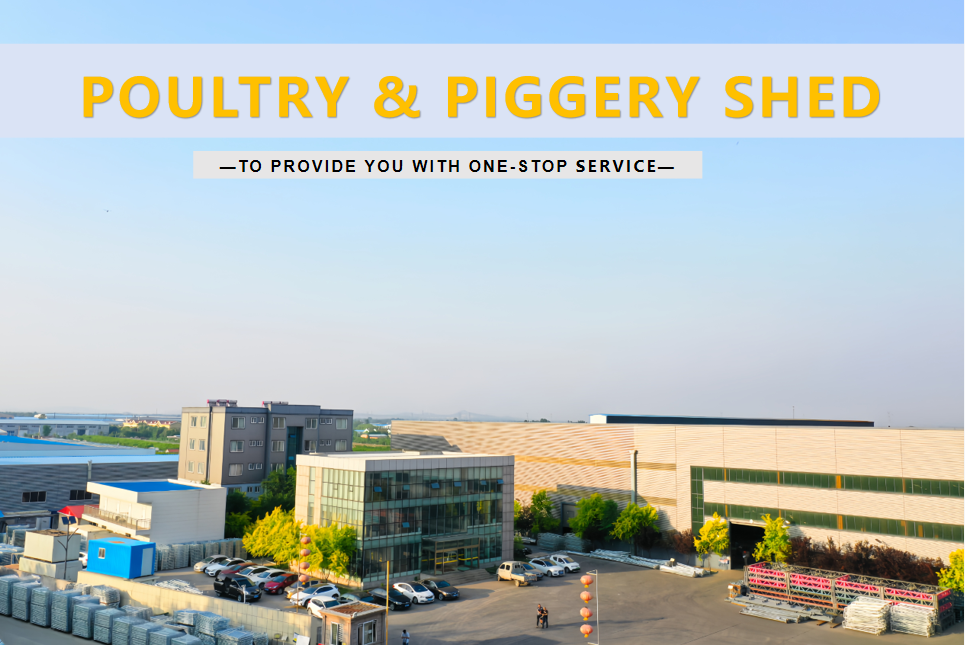

Qingdao KXD Steel Structure Co.,Ltd, established in 2002, is a professional manufacturer specializing in steel structure poultry&piggery houses with automatic equipment. With over two decades of development, our company has been committed to providing high quality agricultural building solutions for the clients all around the world.

With high-quality products and good after-sales service, our company has obtained CE certification (EN1090 certificate), ISO 9001, IS0140001, 1S045001 Certificate and WPQR for anticipated appraisal from our clients. The professional technical teams at KXD ensure that every project can be finished perfectly from design to installation. Every product meets international standards for durability, efficiency, and sustainability. Our products have been exported to more than 130 countries and regions around the world, such as America,France,Holland, Australia, Peru, Argentina, Uruguay and the whole of Africa area countries etc.

Dedication to customer satisfaction, combined with its advanced manufacturing processes and rigorous quality control, Qingdao KXD continues to expand its global footprint, delivering reliable and cost-effective steel structure farming solutions that support the global poultry & piggery industry.
